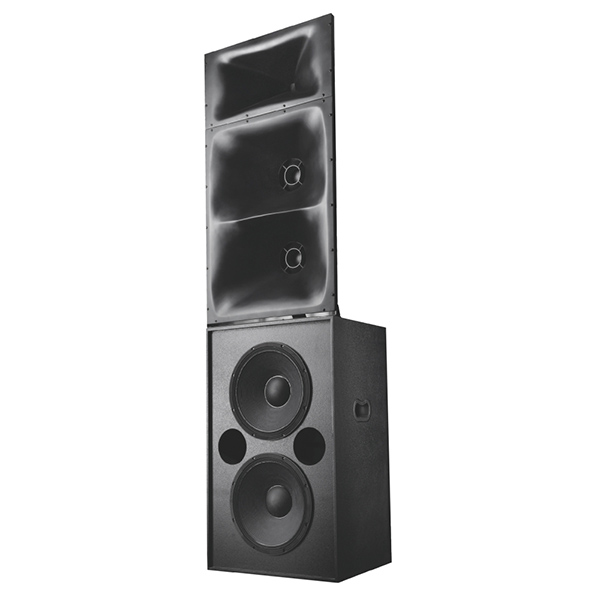

FDM-12600MA

FDM-12600MA

A Legacy of Trust, Innovation, and Excellence


  • FEATURES

  1. 3-way system design enhanced for critical film sound reproduction in medium to large cinemas environments

  2. Available for Tri-amplified or Bi-amplified operation

  3. Provides 90° horizontal by +20° to -30° vertical coverage

  4. Optimized waveguide technology delivers a consistent pattern

  5. Built-in crossover network with transducer-protection circuitry prolongs equipment life

  6. Dual 18-inch transducers deliver 1600W output, superior bass extension

  7. Frequency response: 25 Hz–20 kHz (-10 dB)

  8. Throw capability of up to 30m suitable for 300–500-seat cinemas


  • SPECIFICATION


     Speaker Unit     18"x2 + 10"x2 + 3"x1
     Frequency Response     25Hz ~ 20kHz
     Impedance

     LF: 4Ω

     M/HF: 8Ω

     Rated Output Power

     LF: 1600W

     HF: 800W

     Sensitivity

     LF: 100dB

     M/HF: 106dB

     HxV Angle     90° x 30° (+20° to -30°)
     Crossover

     LF/M: 250Hz

     M/HF: 1.7kHz

     Distortion     ≤1%
     Dimensions (WxDxH)

     LF: 760 x 605 x 1245 mm

     M/HF: 760 x 480 x 1550 mm

     Net Weights

     LF: 89.2kg

     M/HF: 45kg
